Headsets of ASHIDA SOUND
Headsets widely used in
broadcast stations and theaters as well as at events.
-

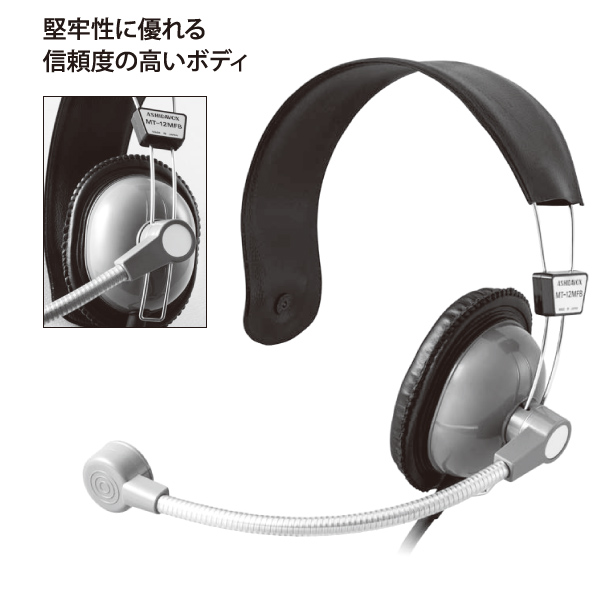

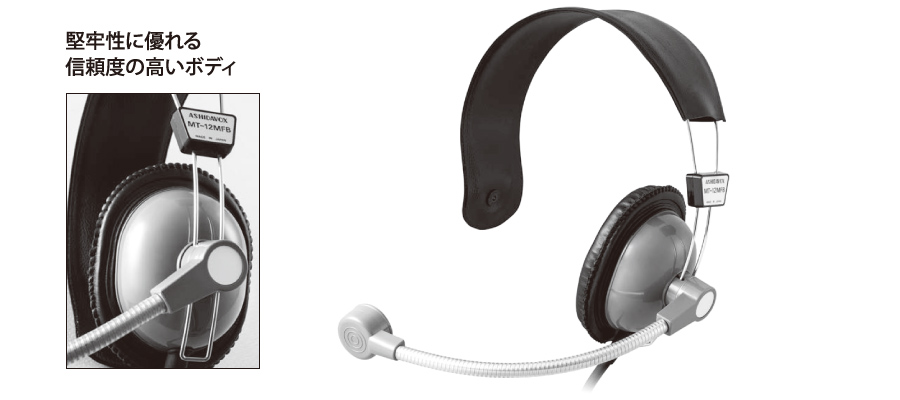

MT-12MFB
Microphone*1 Type Dynamic Directivity Omni-directional Impedance 200Ω Sensitivity -22dB Frequency range 300-10,000Hz Receiver Type Magnetic Impedance 150Ω Sensitivity 112dB Frequency range 50-5,000Hz Rated input power Max.200mW Others Cord length 2m Standard plug Non Body weight 270g *1 Microphone pre-amplifier built in
-

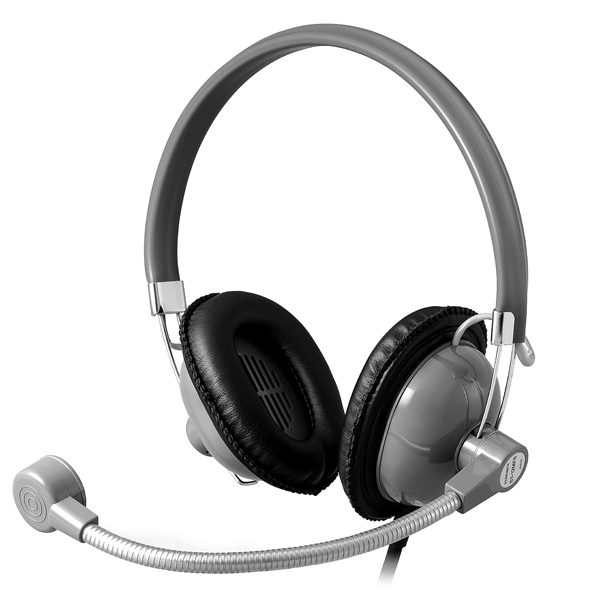

ST-12MFB
Microphone*1 Type Dynamic Directivity Omni-directional Impedance 200Ω Sensitivity -22dB Frequency range 300-10,000Hz Receiver Type Magnetic Impedance 75Ω Sensitivity 112dB Frequency range 50-5,000Hz Rated input power Max.200mW Others Cord length 2m Standard plug Non Body weight 400g *1 Microphone pre-amplifier built in
-

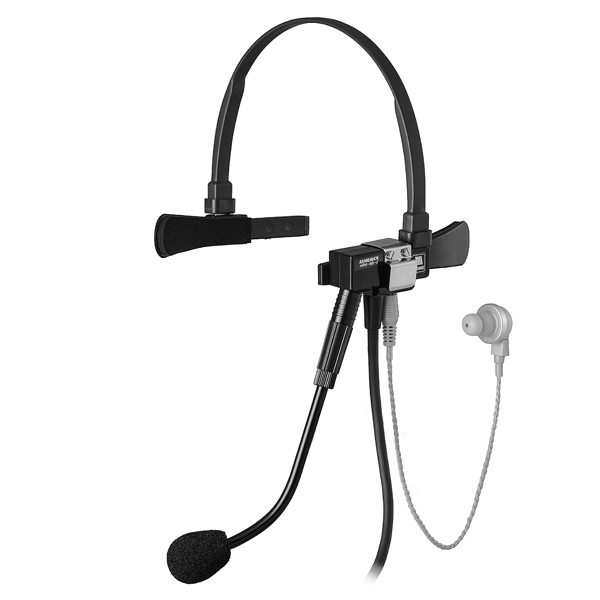

HRM-8B-2
Microphone*1 Type Electret condenser Directivity Uni-directional Impedance 50Ω Sensitivity -25dB Frequency range 350-3,500Hz Receiver PR-17 150Ω Others Cord length 1.5m Standard plug No.110 Body weight 130g *1 Microphone pre-amplifier built in
-
HRM-201B Neck band
Microphone*1 Type Electret condenser Directivity Uni-directional Impedance 50Ω Sensitivity -25dB Frequency range 200-10,000Hz Receiver PR-17 150Ω Others Cord length 2m Standard plug No.110 Body weight 110g *1 Microphone pre-amplifier built in
-

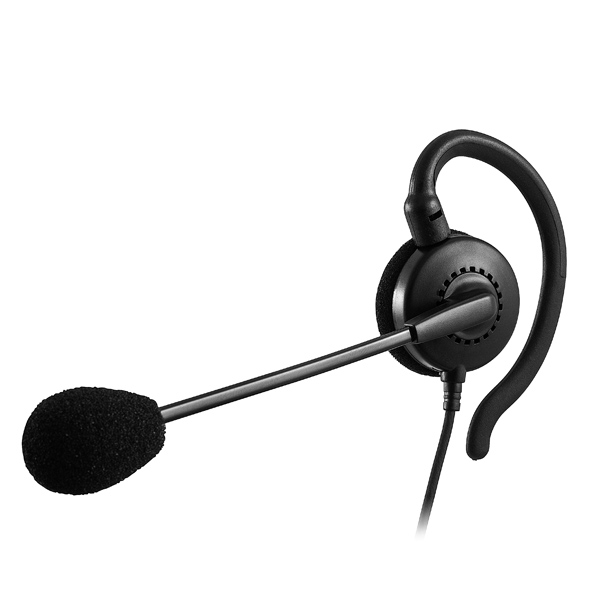

ESM-270-11(ESM-270-28)
Microphone Type Electret condenser Directivity Omni-directional Impedance 2.2kΩ Sensitivity -42dB Frequency range 100-10,000Hz Receiver Type Dynamic Impedance 8Ω Sensitivity 116dB Frequency range 5-10,000Hz Rated input power 10mW Others Cord length 1m Standard plug φ3.5L,3P(ESM-270-28: φ2.5L,3P) Body weight 30g -

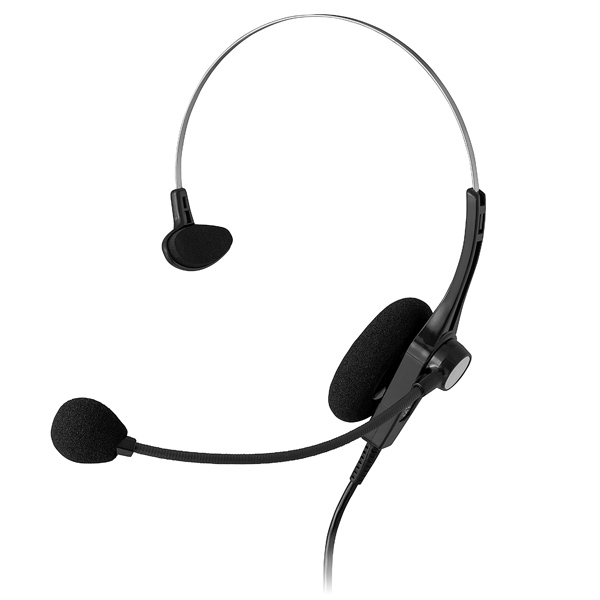

MT-669(MT-669D)
Microphone Type Electret condenser(MT-669D: Dynamic) Directivity Uni-directional Impedance 2.2 kΩ(MT-669D: 200Ω) Sensitivity -46 dB (MT-669D: -68dB) Frequency range 200-5,000Hz(MT-669D: 100-10,000Hz) Receiver Type Dynamic Impedance 32Ω Sensitivity 118dB Frequency range 300-4,000Hz Rated input power Max.100mW Others Cord length 2m Standard plug φ3.5,3P Body weight 115g(MT-669D: 105g) -

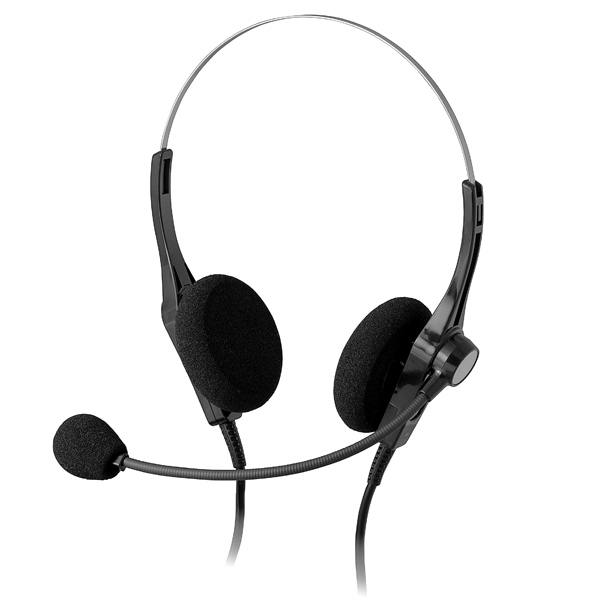

ST-669(ST-669D)
Microphone Type Electret condenser(ST-669D: Dynamic) Directivity Uni-directional Impedance 2.2kΩ(ST-669D: 200Ω) Sensitivity -46dB(ST-669D: -66dB) Frequency range 20-15,000Hz(ST-669D: 150-12,000Hz) Receiver Type Dynamic Impedance 40Ω Sensitivity 114dB Frequency range 300-4,000Hz Rated input power Max.300mW Others Cord length 2m Standard plug φ3.5,3P Body weight 130g(ST-669D: 150g) -

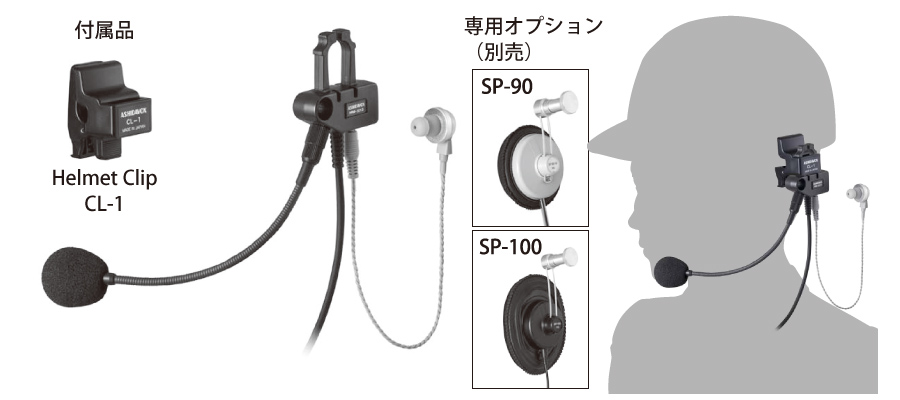

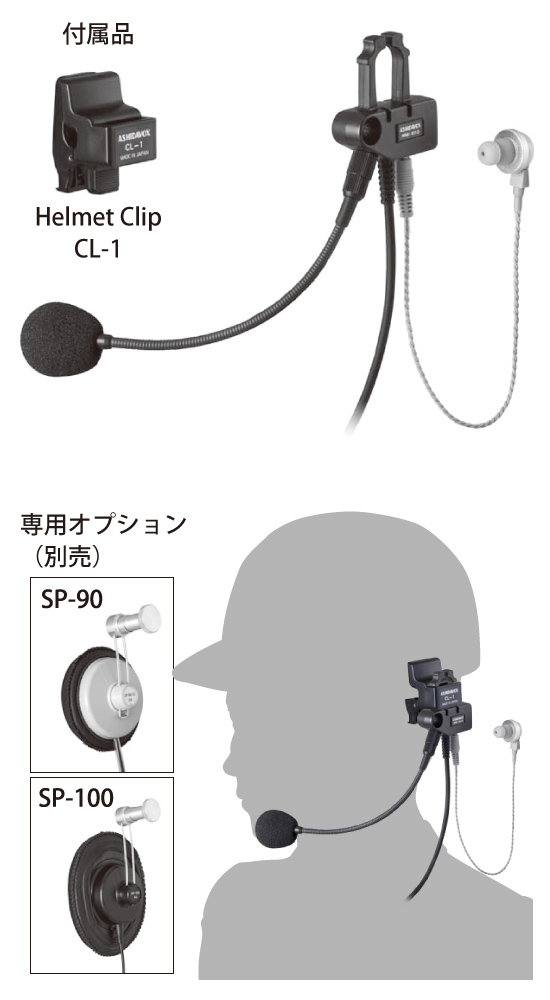

HRM-301(HRM-301D) Helmet mounting
Microphone Type Electret condenser(HRM-301D: Dynamic) Directivity Uni-directional Impedance 1.6 kΩ(HRM-301D: 200Ω) Sensitivity -47 dB (HRM-301D: -68dB) Frequency range 300-15,000Hz(HRM-301D: 100-12,000Hz) Receiver PR-17 300 Ω Others Cord length 1m Standard plug Non Body weight 90g -

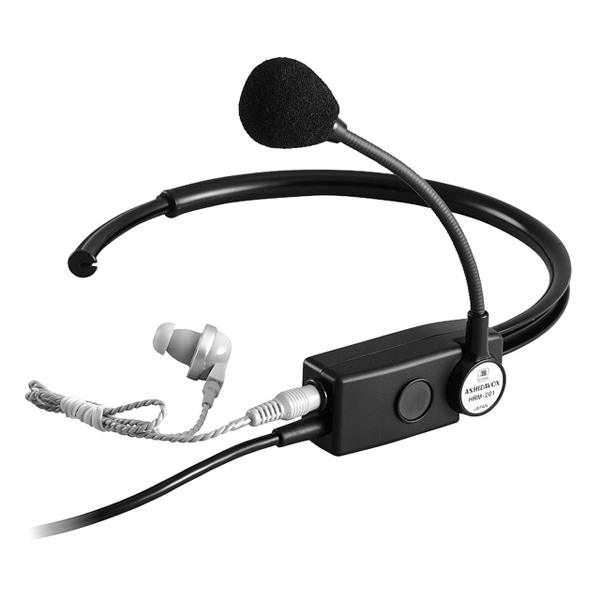

HRM-201(HRM-201D) Neck band
Microphone Type Electret condenser(HRM-201D: Dynamic) Directivity Uni-directional Impedance 1.6kΩ(HRM-201D: 200Ω) Sensitivity -47dB(HRM-201D: -66dB) Frequency range 100-7,000 Hz(HRM-201D: 200-12,000Hz) Receiver PR-17 8Ω Others Cord length 2m Standard plug No.110 Body weight 107g(HRM-201D: 120g) -

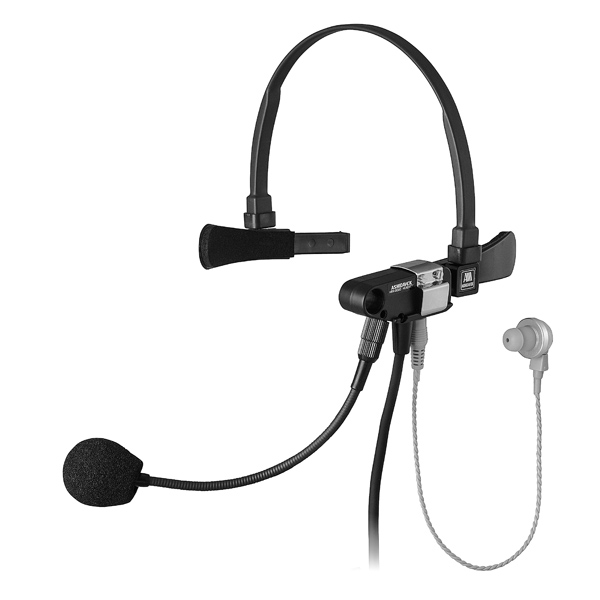

HRM-808(HRM-808D)
Microphone Type Electret condenser(HRM-808D: Dynamic) Directivity Uni-directional Impedance 1.6kΩ(HRM-808D: 200Ω) Sensitivity High -47dB / Low -57dB(HRM-808D: -66dB) Frequency range 20-15,000Hz(HRM-808D: 200-12,000Hz) Receiver PR-17 8Ω Others Cord length 1.5m Standard plug Non Body weight 120g -

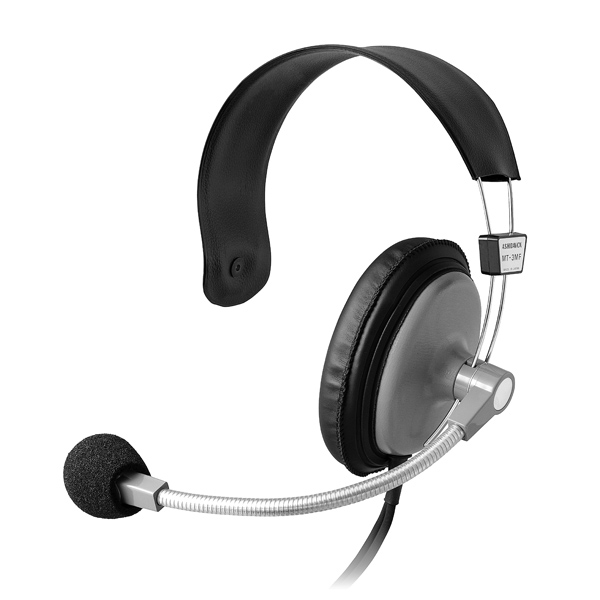

MT-3MF(MT-3M*2)
Microphone Type Dynamic Directivity Uni-directional Impedance 200Ω Sensitivity -66dB Frequency range 150-12,000Hz Receiver Type Dynamic Impedance 8Ω Sensitivity 108dB Frequency range 20-6000Hz Rated input power Max.500mW Others Cord length 2m Standard plug mic φ3.5,2P/Recφ6.34,2P Body weight 330g *2 The flexible part of this type is stationary. Contact us since the specifications differ.
-
MT-12MF(MT-12M*2)
Microphone Type Dynamic Directivity Uni-directional Impedance 200Ω Sensitivity -66dB Frequency range 50-7,000Hz Receiver Type Dynamic Impedance 8Ω Sensitivity 112dB Frequency range 30-4,000Hz Rated input power 1mW Others Cord length 2m Standard plug mic φ3.5,2P/Recφ6.34,2P Body weight 290g *2 The flexible part of this type is stationary. Contact us since the specifications differ.
-

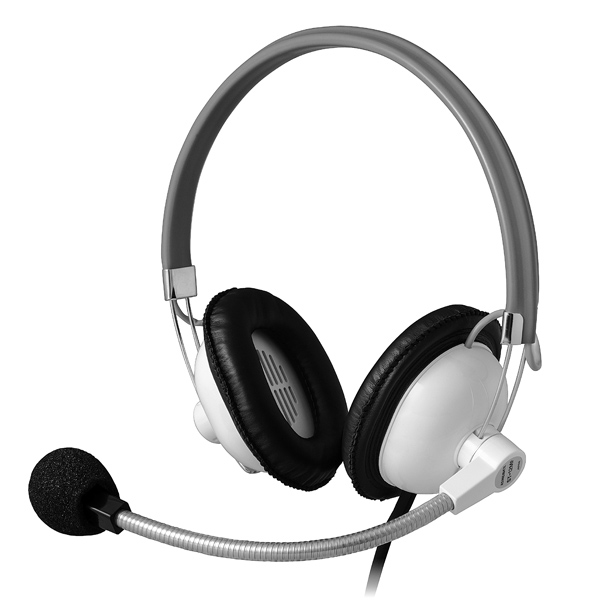

ST-12MF(ST-12M*2)
Microphone Type Dynamic Directivity Uni-directional Impedance 200Ω Sensitivity -66dB Frequency range 200-10,000Hz Receiver Type Dynamic Impedance 8Ω Sensitivity 112dB Frequency range 30-4,000Hz Rated input power 1mW Others Cord length 2m Standard plug mic φ3.5,2P/Recφ6.34,3P Body weight 380g *2 The flexible part of this type is stationary. Contact us since the specifications differ.
